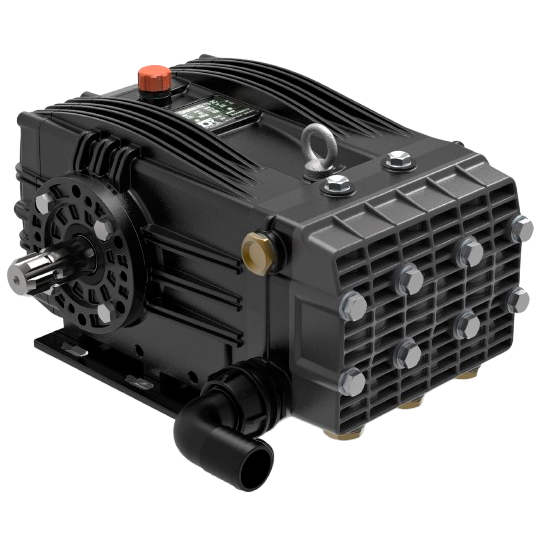

The Udor plunger pumps from the Gamma series are designed to work at medium pressures (max 60 bar), with large flow rates (up to 240 l/min) and at low rotation speed (600 rpm). Gamma pumps mount heads made of aluminum. The performances offered make this type of pumps suitable for use on vehicles for road washing, fire-fighting systems and washing applications in the agricultural sector. The low rotation speed allows an intensive use of the Gamma pumps.
Download the product sheetMax pressure (bar) | 60 |
Flow rate (l/min) | from 67 to 240 |
Manifold | aluminium |
PTO | male shaft Ø 35 mm |
PN | RPM | FLOW RATE (L/MIN) | MAX PRESSURE (BAR) | MAX POWER (KW) | JIT DELIVERY |
---|---|---|---|---|---|
14837700 (GAMMA 62 TS 1C) | 600 | 67 | 50 | 6,4 | |
14837600 (GAMMA 62 TS 2C) | 600 | 67 | 50 | 6,4 | |
14838200 (GAMMA 85 TS 1C) | 600 | 85 | 60 | 9,8 | |
14838100 (GAMMA 85 TS 2C) | 600 | 85 | 60 | 9,8 | |
14838700 (GAMMA 105 TS 1C) | 600 | 108 | 60 | 12,4 | |
14838600 (GAMMA 105 TS 2C) | 600 | 108 | 60 | 12,4 | |
14839200 (GAMMA 125 TS 1C) | 600 | 133 | 60 | 15,3 | |
14839100 (GAMMA 125 TS 2C) | 600 | 133 | 60 | 15,3 | |
14817200 (GAMMA 155 TS 2C) | 600 | 153 | 50 | 14,6 | |
14839700 (GAMMA 162 TS 1C) | 600 | 164 | 60 | 18,8 | |
14839600 (GAMMA 162 TS 2C) | 600 | 164 | 60 | 18,8 | |
14837200 (GAMMA 202 TS 1C) | 600 | 208 | 60 | 23,9 | |
14837100 (GAMMA 202 TS 2C) | 600 | 208 | 60 | 23,9 | |
14840200 (GAMMA 242 TS 1C) | 500 | 240 | 60 | 27,5 | |
14840100 (GAMMA 242 TS 2C) | 500 | 240 | 60 | 27,5 | |
TS 1C = ø35 - 1”3/8 splined | |||||
TS 2C = 2 x 1”3/8 splined |
