BRAGLIA

GVB

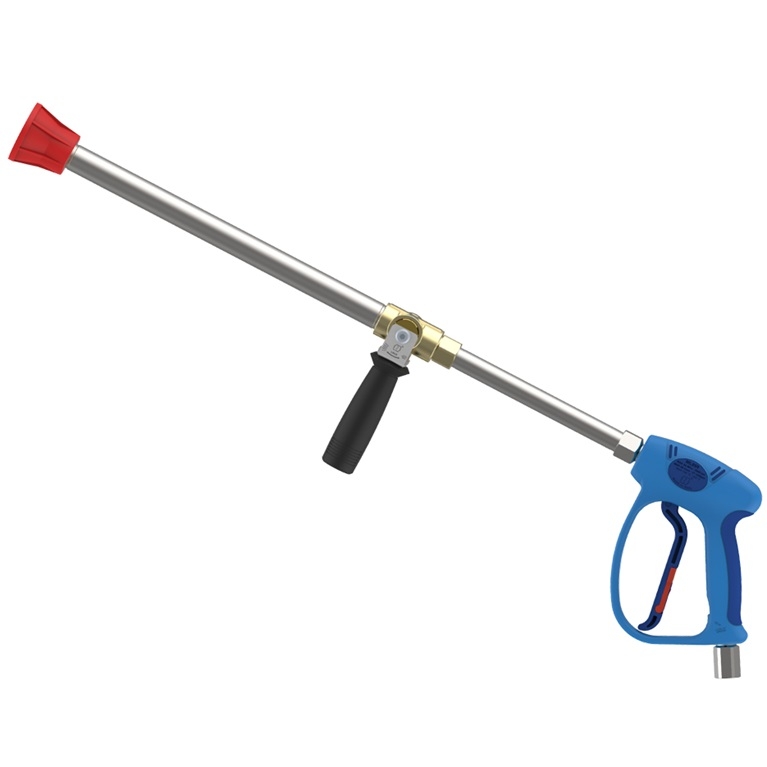

Variable spray angle lance

The Braglia GVB variable jet wash lance can work with pressures up to 250 bar and flow rates up to 30 l/min. The peculiarity of this lance is given by the possibility of adjusting the spray angle through the handle (even when the gun is open). This allows the operator to switch from a pencill jet, which favors power and distance, to a fan jet, which allows to cover larger surfaces. The GVB variable jet lance is the ideal solution for urban/street cleaning applications that require extremely versatile devices in order to respond to different washing needs. It can also be used with small firefighting vehicles equipped with a high pressure pump used to deliver water mixed with special additives.

document Download the product sheet

Technical data

Max pressure (bar) 250
Max flow rate (l/min) 30
Tube stainless steel

Part numbers

PN GUN TYPE LENGTH (MM) INLET OUTLET JIT DELIVERY
4022901161 RL 26 720 G 1/2" M nozzle M15x1 Ø1,5 Check
4022161711 for PA guns 520 G 1/4" M nozzle holder M15x1
4022161773 for Tecomec guns 520 G 1/4" M nozzle holder M15x1

MORE INFORMATION

  • Brand: Braglia
  • The lever is fitted with a safety latch to prevent involuntary actions
  • Made in Italy
